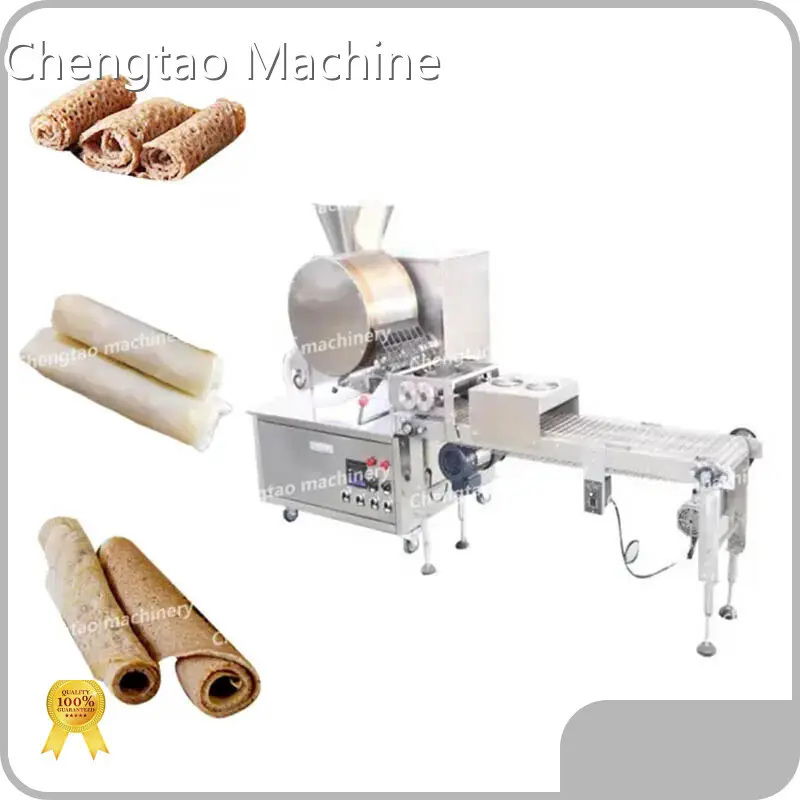

Hotspring Roll Sheet Machine Chengtao Machine Brand
Product details of the spring roll sheet machine
Quick Overview
Always applying the best design idea into our spring roll sheet machine is one of the reasons why they are so popular. The product is manufactured with high precision to meet the set industry quality standards. With so many good characteristics but low in price, the product is now widely used in the market.
Product Description
Choose Chengtao Machine's spring roll sheet machine for the following reasons.
Specifications
|
Diameter of Heating Cylinder |
400mm/500mm/800mm/1200mm |
|
Machine Dimension |
3300*1500*2200mm |
|
Machine Net Weight |
1250KG |
|
Material |
304 Stainless Steel |
|
Electric Power |
59KW or Gas Heating |
|
Host Power |
0.75KW |
|
Belt Power |
0.55KW |
|
Size of the Sheet(Maximum) |
600mm, Length can be adjusted |
|
Thickness of the Sheet |
0.3-2mm |
|
Heating Sheets |
24PCS |
|
Rotational Speed |
2-3RPM |
|
Production Capacity(1) |
500-1000pcs/h;1000-1500pcs/h |
|
Production Capacity(2) |
3000-4500pcs/h;4500-7000pcs/h |
|
Production Capacity(3) |
10000pcs/h |
Advantages
Slurry supply system 1/4HP, continuously variable speed
SSR automatic temperature control system, temperature error ± 1°C
Cold water cooling to prevent clogging of the discharge nozzle
Main engine transmission system 1/4HP, continuously variable speed
Including baking wheel insulation cover and two spray nozzles
